Start to my H22 Intake Manifold


cletus7
New User
Posts: 10
Joined: 11/08
Posted: 01/10/10 07:48 AM

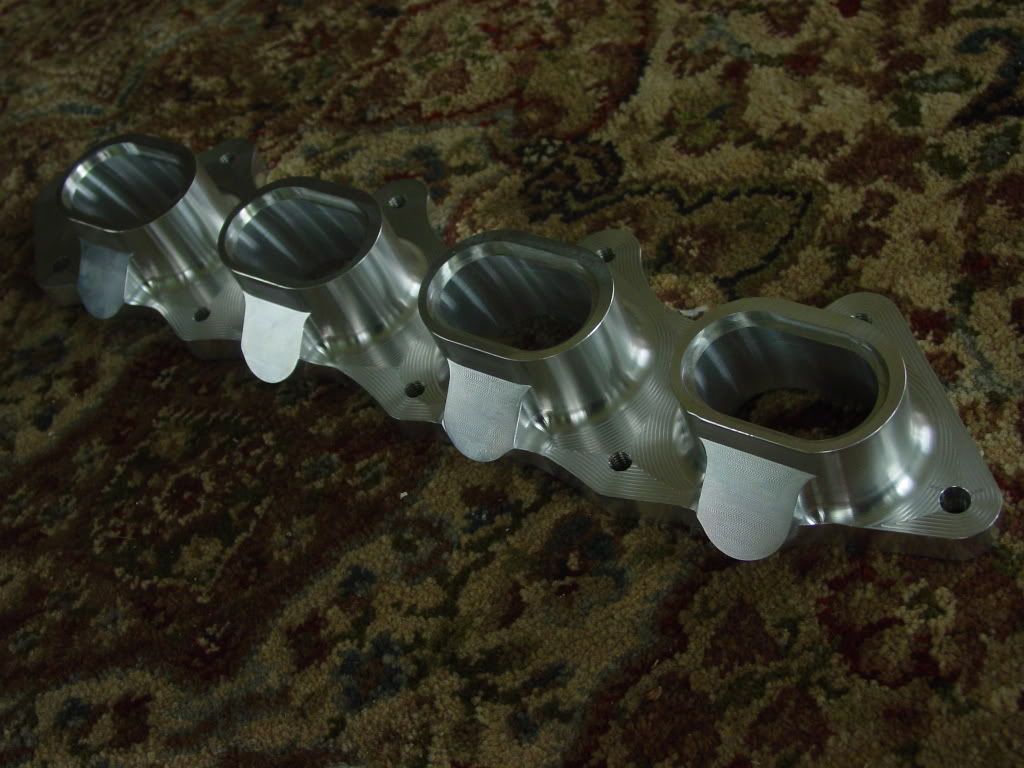

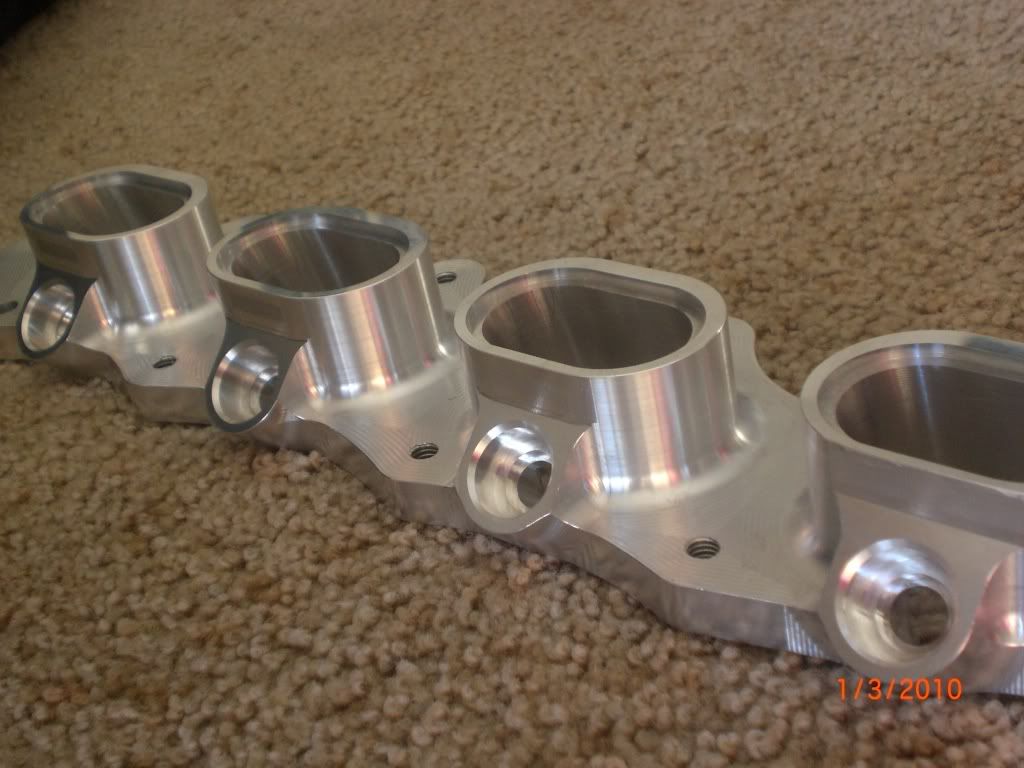

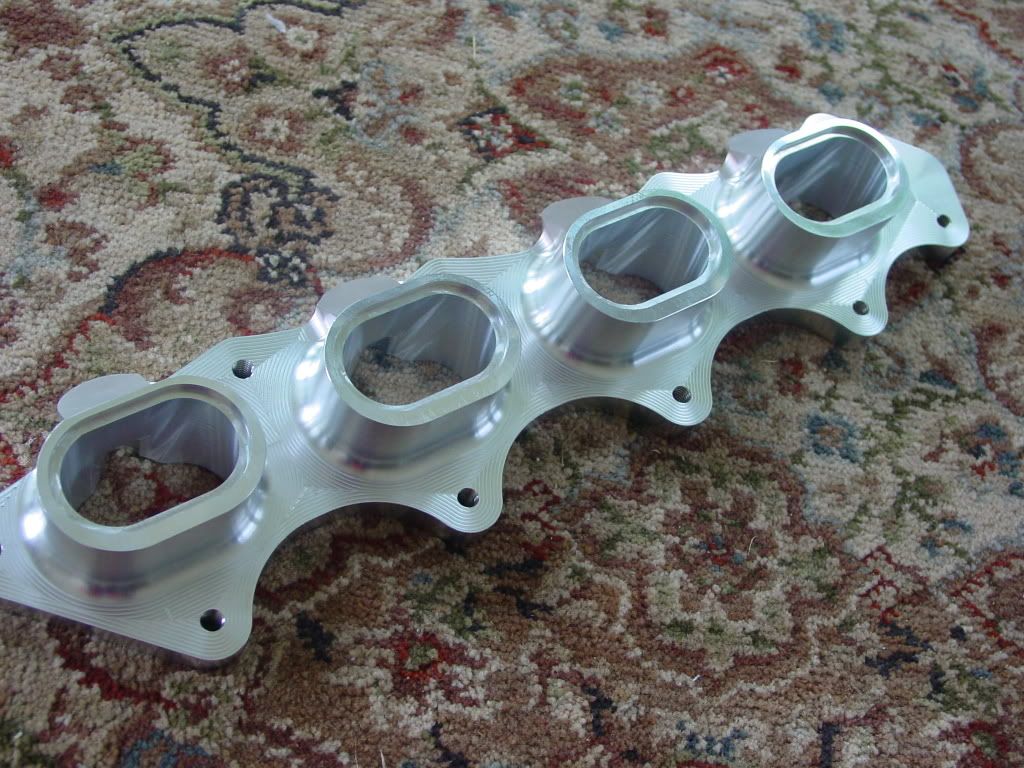

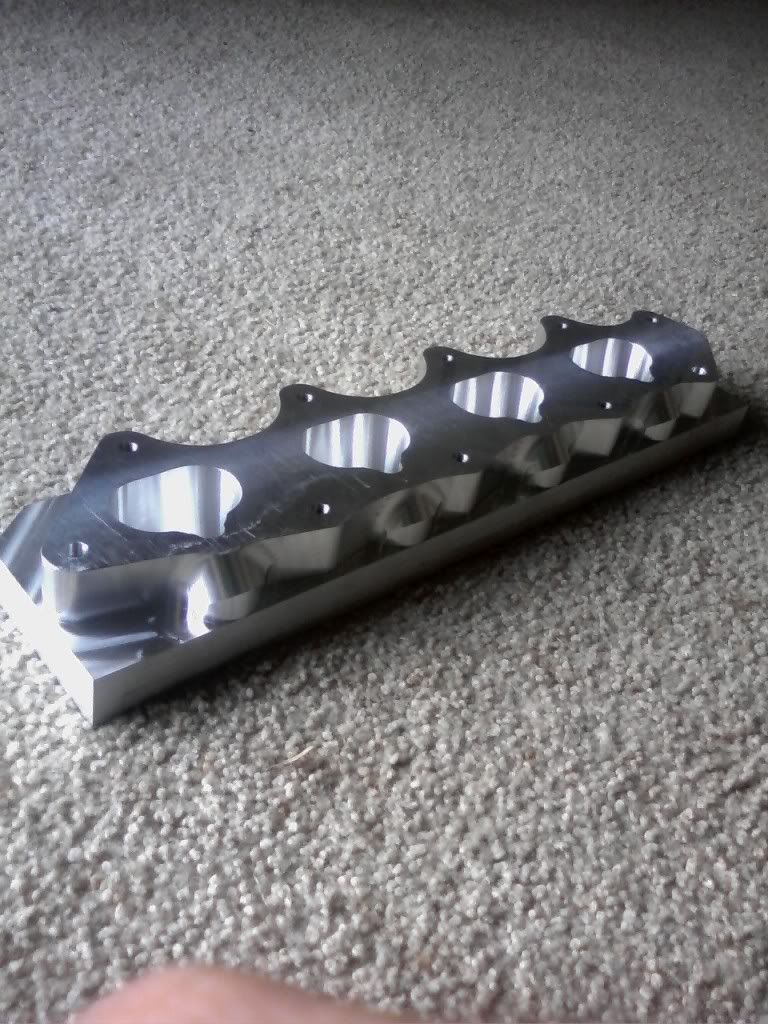

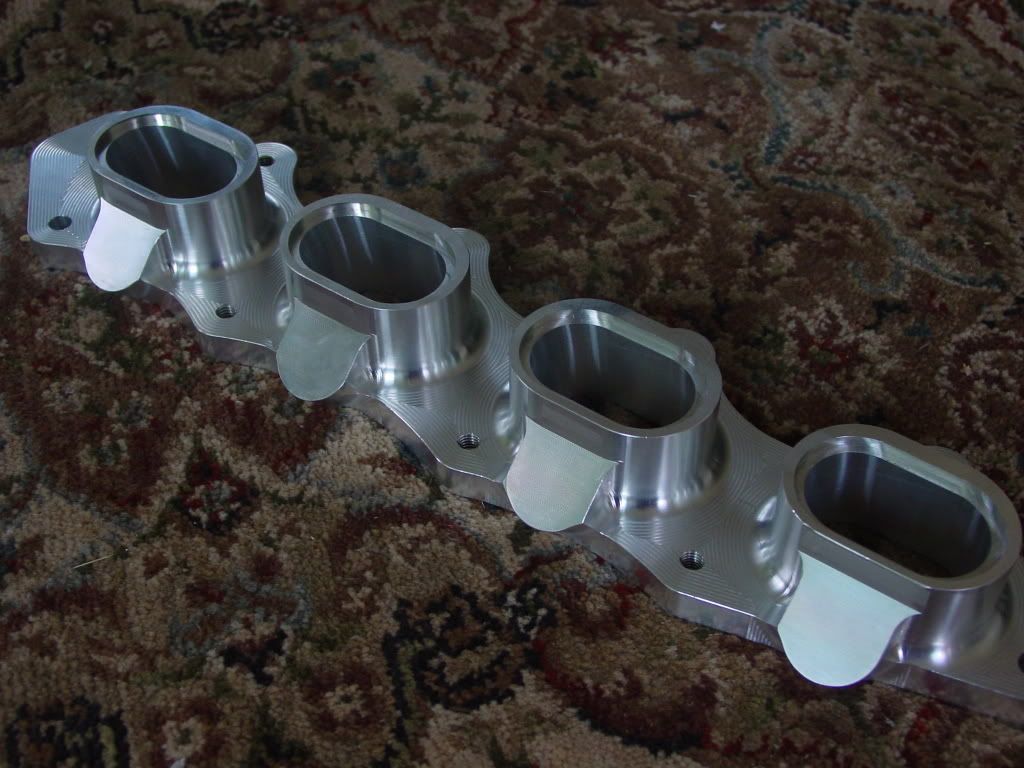

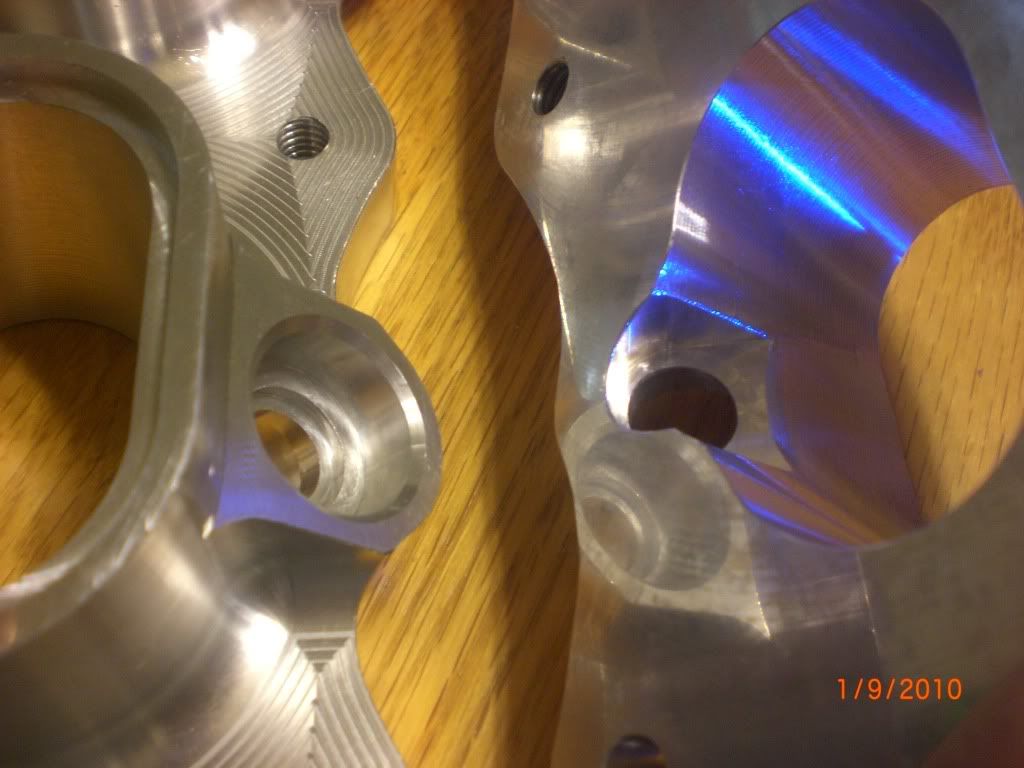

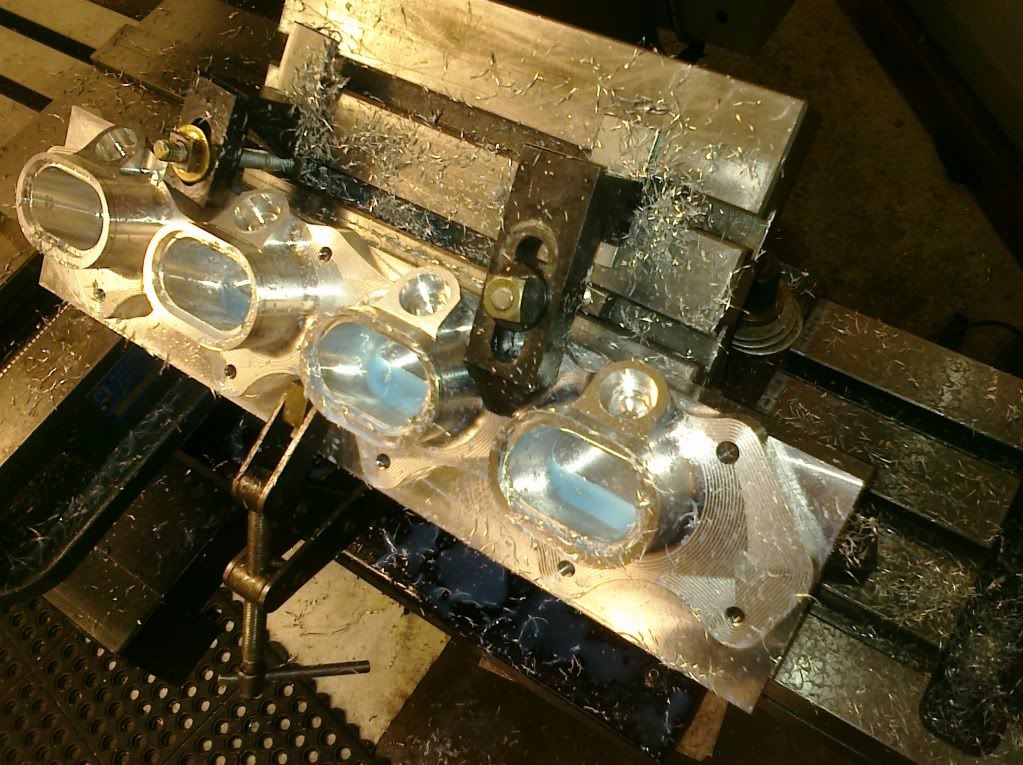

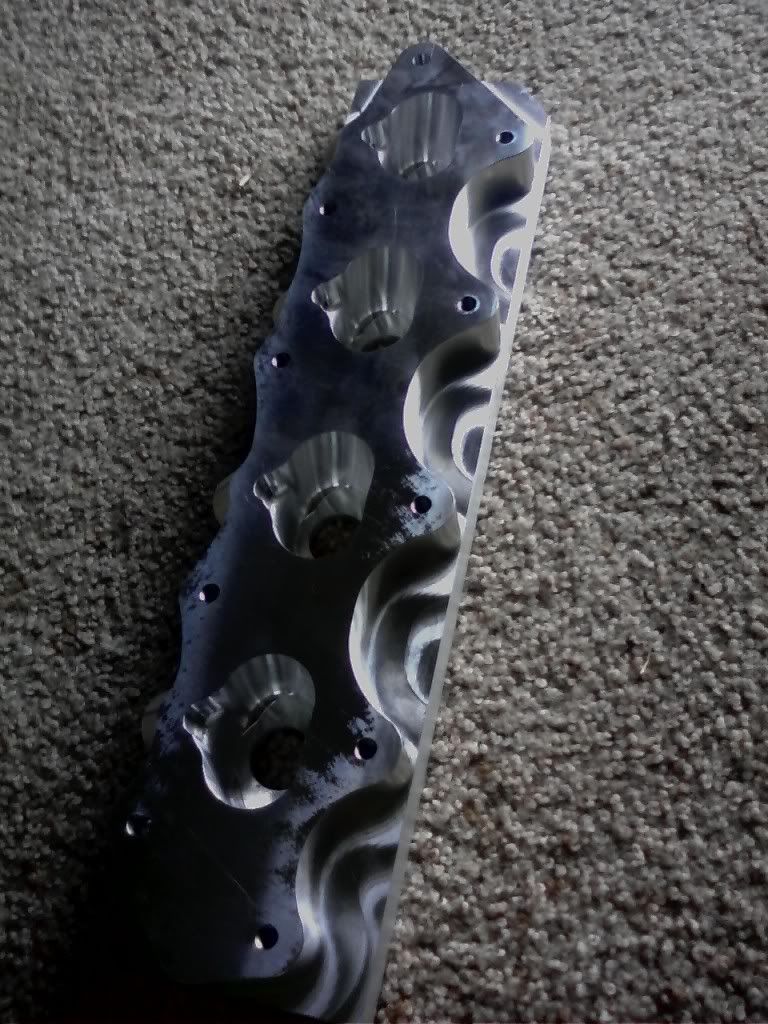

Ive been working on an intake manifold for my turbo H22 just wanted to post some pics of the flange I finally finished.  All other components were purchased from Ross Machine Racing(velocity stacks,plenum,runner material).  This flange was created using Solidworks and a Zeiss CMM.  We swept features from the cylinder head into the runners to determine the taper I wanted use to get me from the extursion to the port. Anyways here are the pics in production order operations 1 through 4.

P 00102
P 00101
P 00100
Op2complete004
Op2complete003
Op2complete002
CIMG0014
CIMG0015
CIMG2411
CIMG2420
CIMG2421
