Peakboost turbo kit for the RSX


archull1
New User
Posts: 1
Joined: 07/07
Posted: 07/20/07 07:30 PM

Ok, like the title says, I finally received some pics from the guys at peakboost about their DC5 series turbo kits.  These are basically teaser shots, they are sending me the rest afterwhile but its enough to raise interest.

Here also is the info on their pricing they sent me.  I think it is pretty *** fair for what you get compared to many kits out there:



Here is a breakdown of the kit:

T3/44 Manifold
44mm Dumptube
3" Stainless 2 pc downpipe w v-band
Tial 44mm Wastegate
Tial 50mm Blow off valve
PWR 6" x 23.5" x 3" vertical flow intercooler core(total height is 12")
2.5" Aluminum chargepipe kit with hoses & t-bolt clamps
Steel braided oil/feed return lines
All installation hardware & gaskets
Installation Instructions

Optional water lines with ball bearing turbo upgrade.

Stage 1 retail: $3699.00  T3/T4 based

BB upgrade: GT3076R (57 or 60 trim) or GT35R $600.00 with water lines

Turbos available:

T3/T4
T3/60-1 ($100 upgrade over base kit)
T3/T67   ($200 upgrade over base kit)

GT28RS
GT2871R
GT3071R
GT3076R 57 trim
GT3076R 60 trim
GT35R


And lastly, the pics:

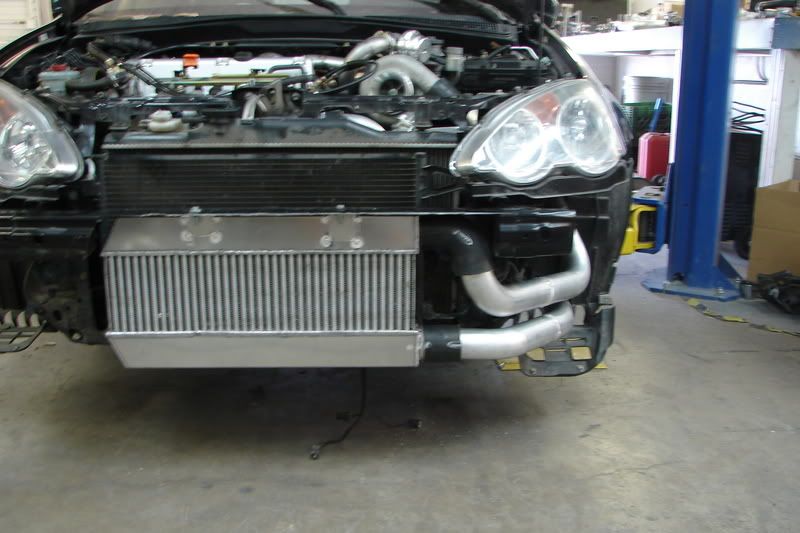

you will notice with the pic of the intercooler, the intercooler looks pretty narrow.  That is because that customer only had small power goals and they had an extra one sitting around at that size (it was from their scion kits which use smaller intercoolers).  The RSX kit's intercooler is 6" wider.

Well, here they are:

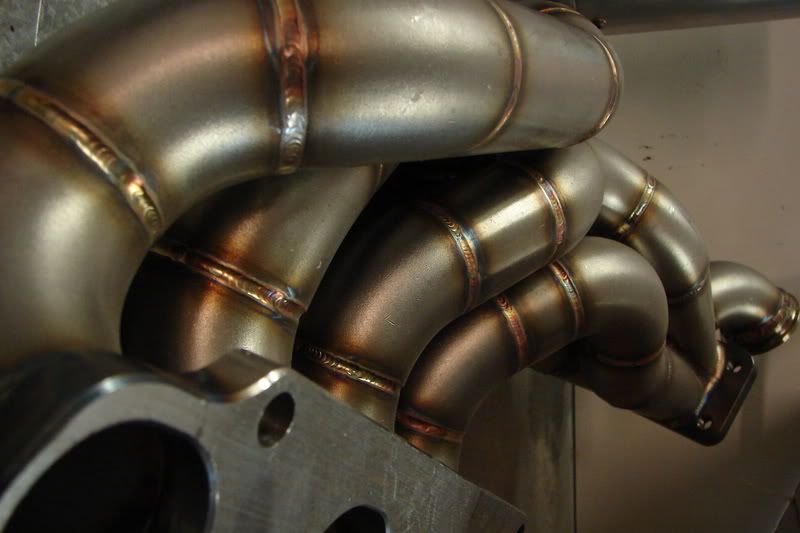

Rsxmanifold2

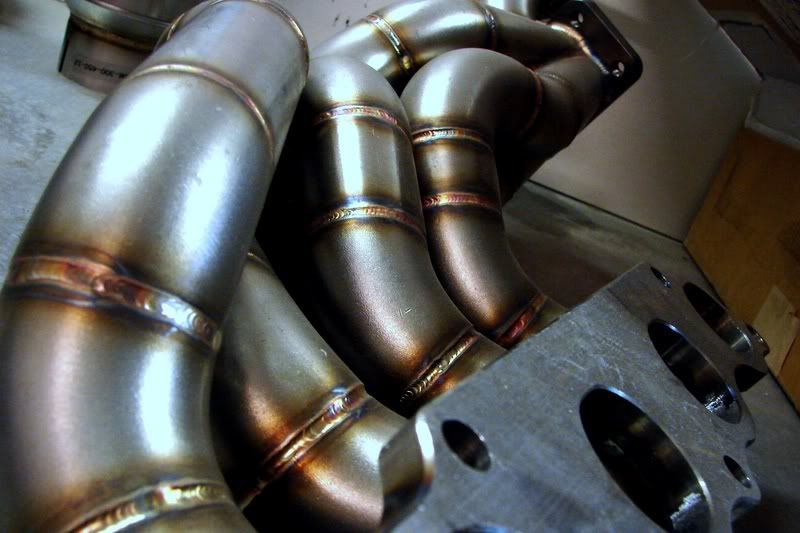

Rsxmani1

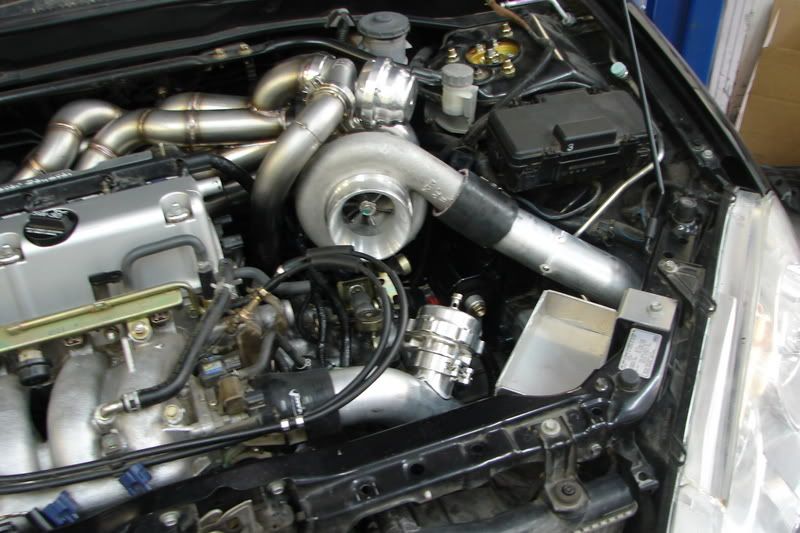

Rsxtop2


Rsxtop

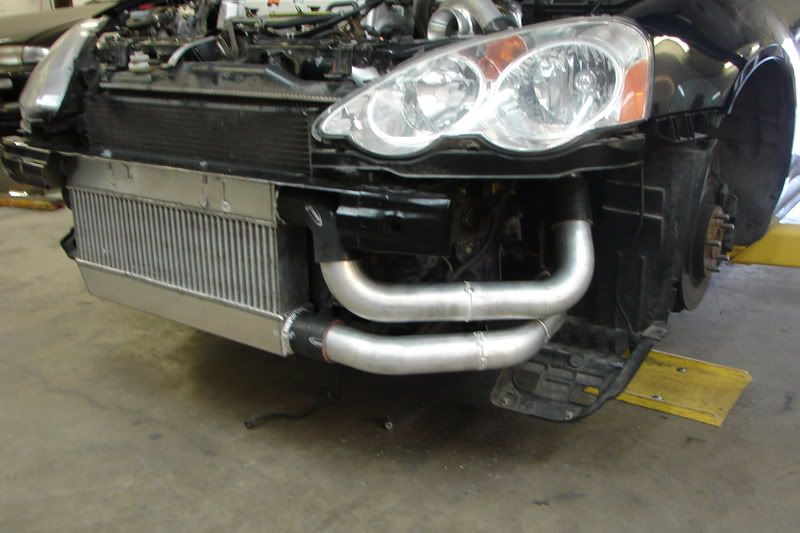

Rsxicp2


Rsxicp1

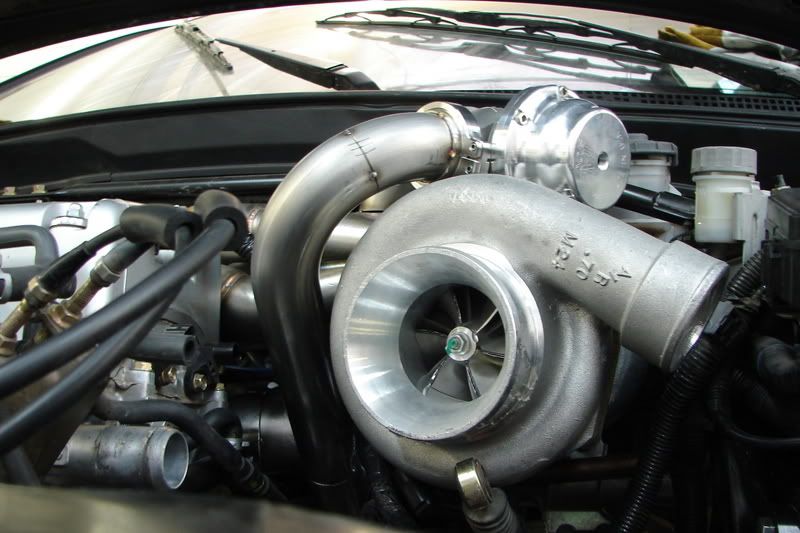

Rsx4

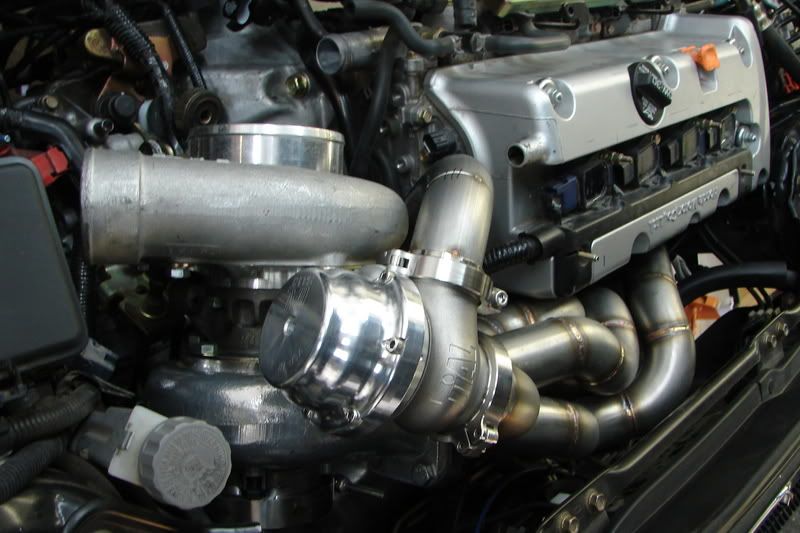

Rsx3


Rsx1 1
